Work Progress
R410A Close-loop Spray Cooling System

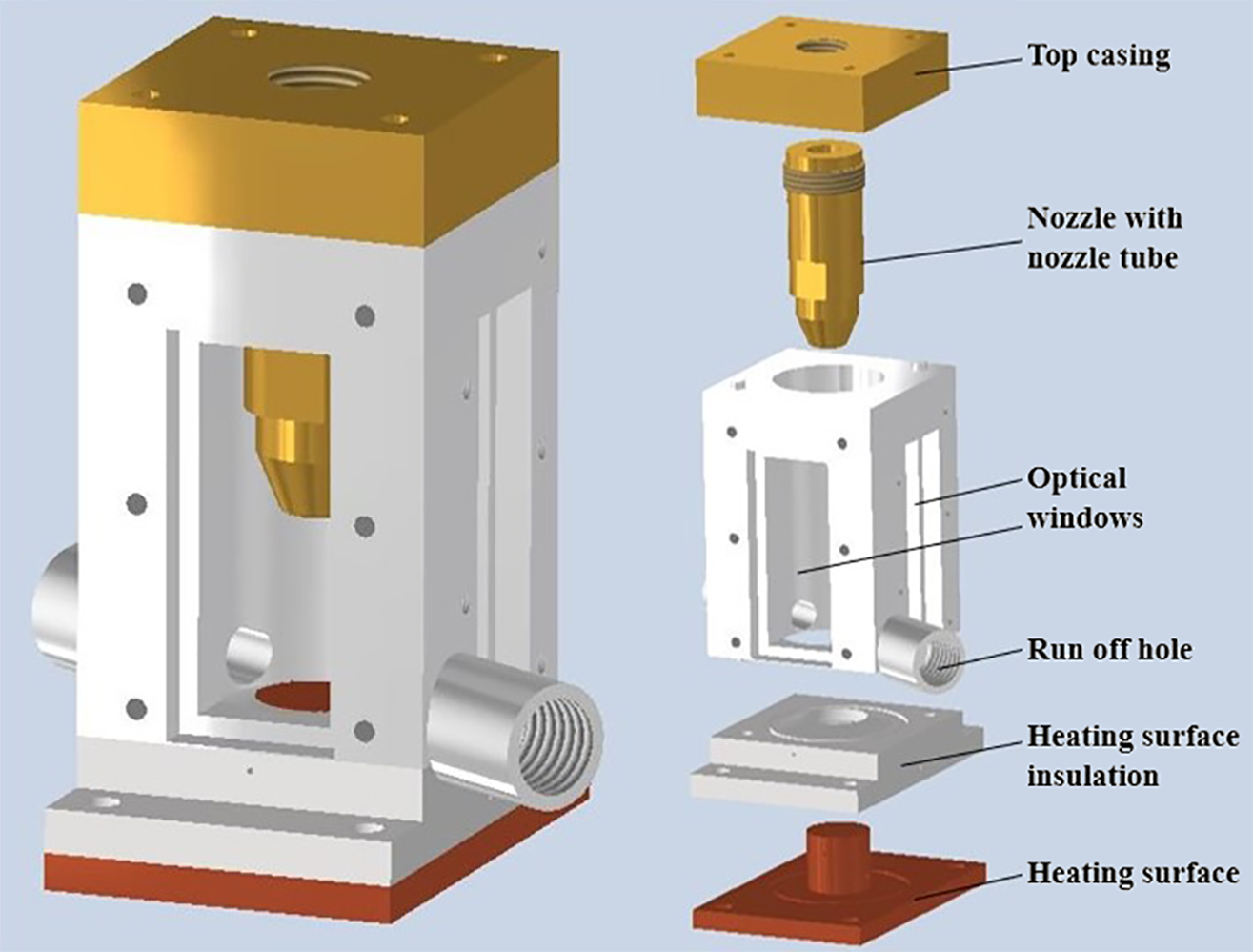

Spray chamber assembly

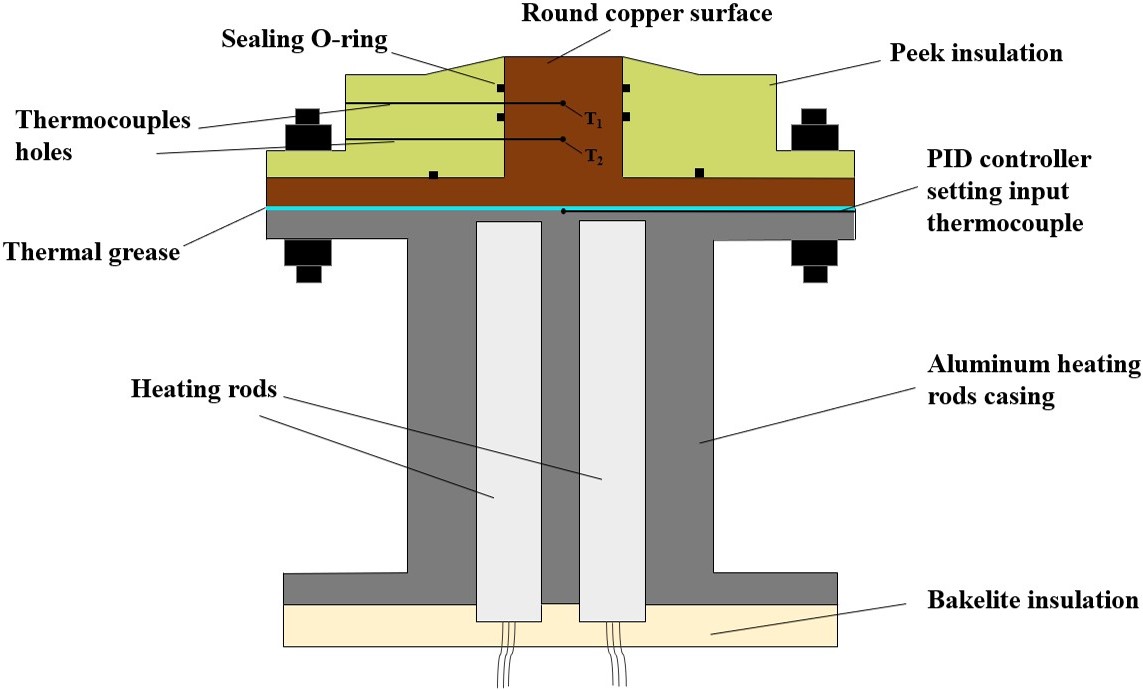

Heating system

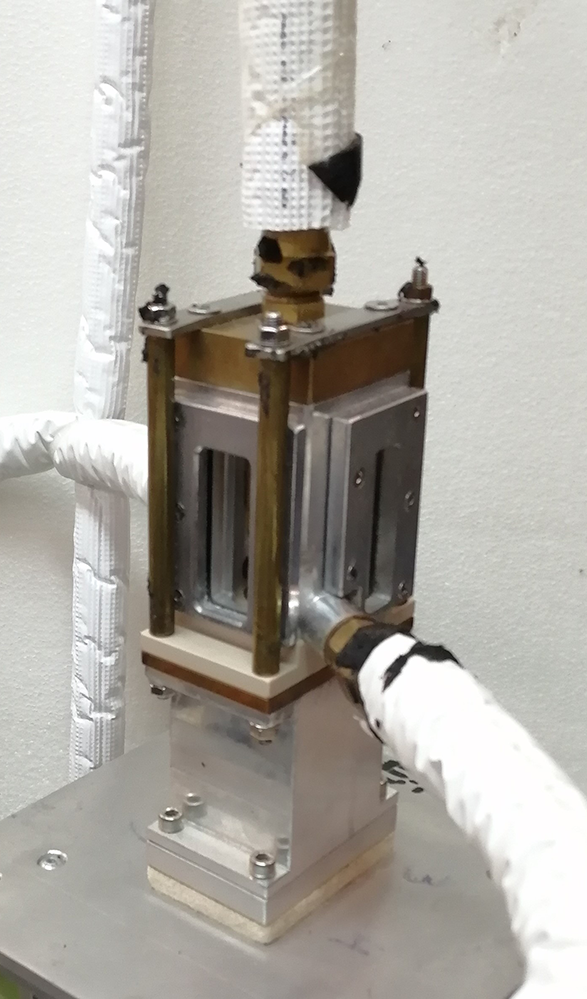

Spray chamber connected

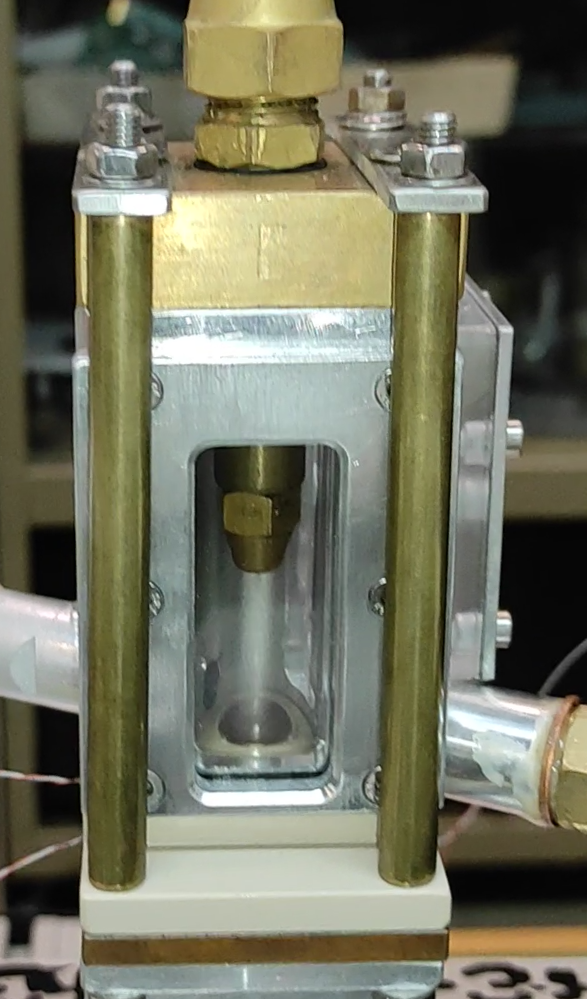

Preliminary spray test
Experimental test bed – Operational
Plain and Modified Surfaces Tested

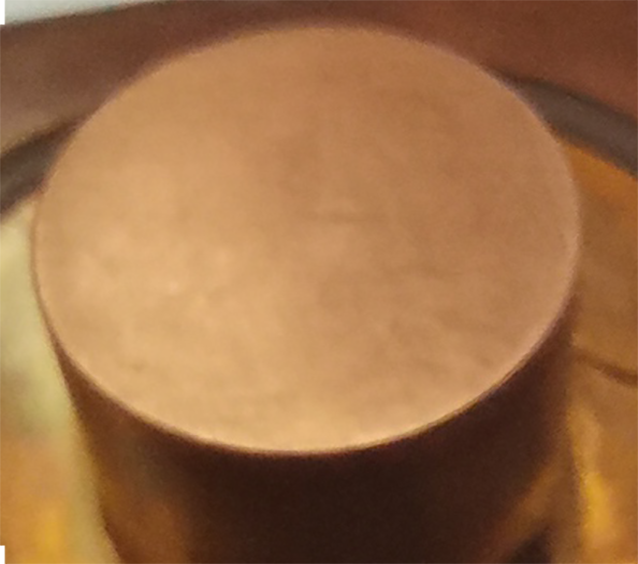

Plain flat surface

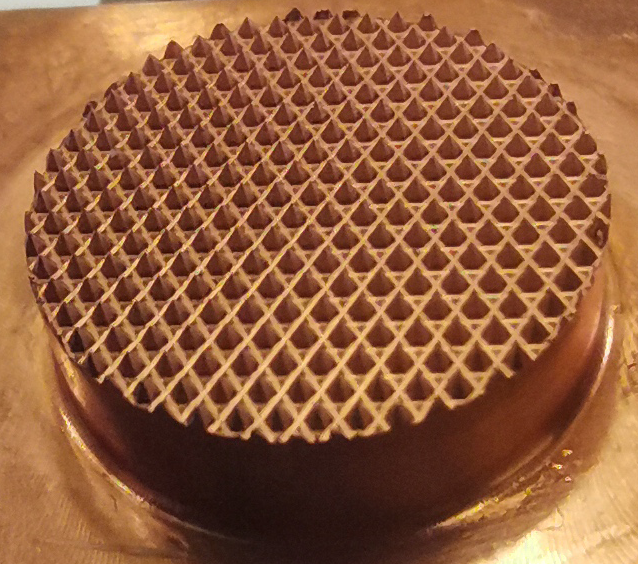

Hexagonal Pyramids

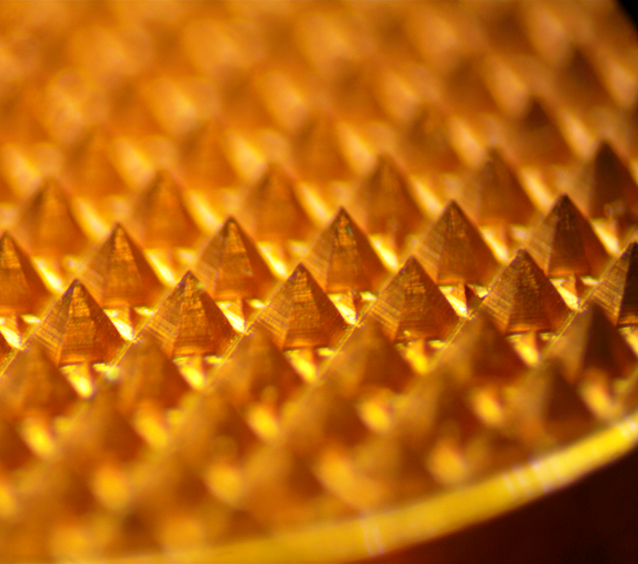

Hexagonal Pyramids with Weir Lip (detail)

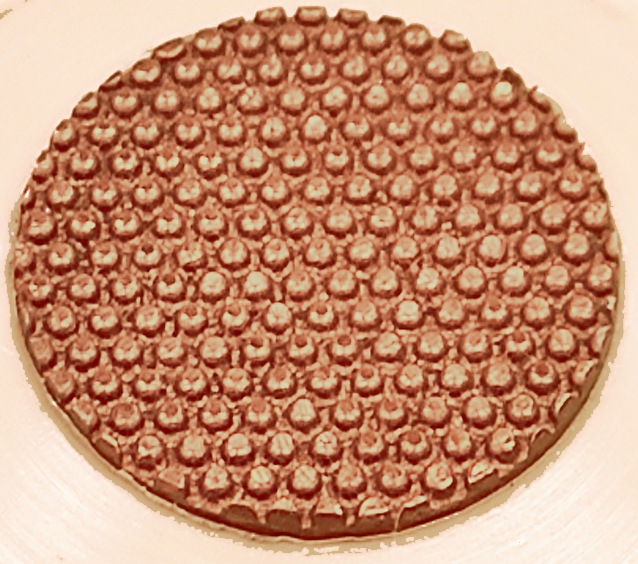

Hemispheres

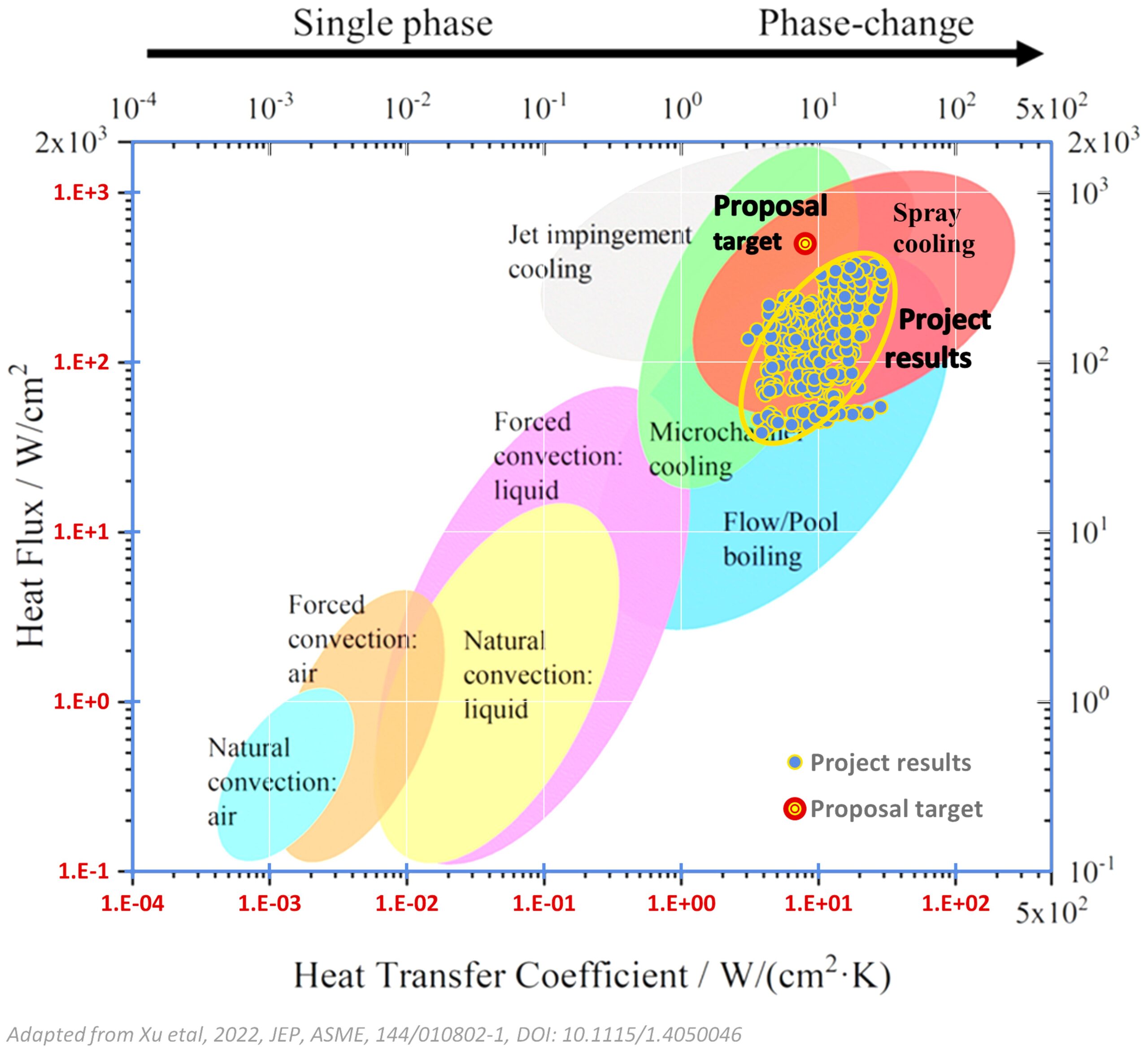

Project results in comparison with expectations.
Results reached 370% in heat transfer coefficient, and 75% in heat flux, of the target values.
The graph indicates that in comparison to the most advanced forced liquid flow solutions for electronics’ cooling, the proposed technology can achieve improvements in the range of 1000-2500%.
Numerical Simulations with R410A Spray
.

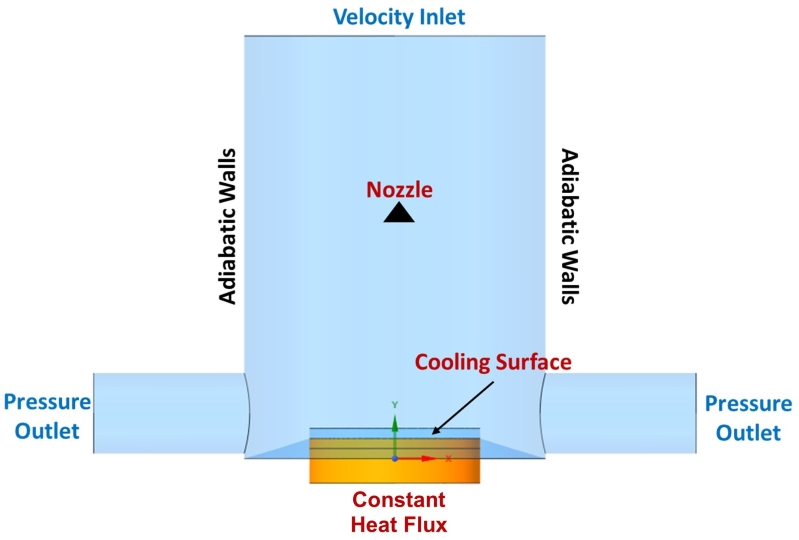

Geometry and Boundary conditions
.

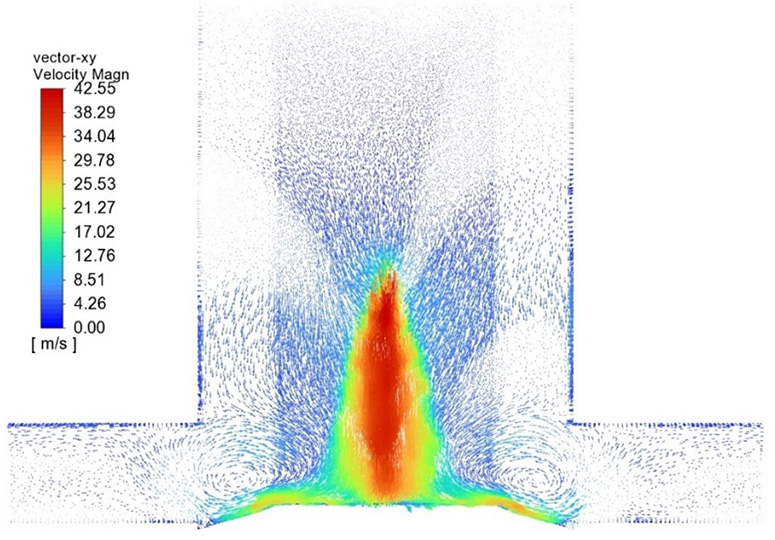

Flow pattern and Velocity magnitude

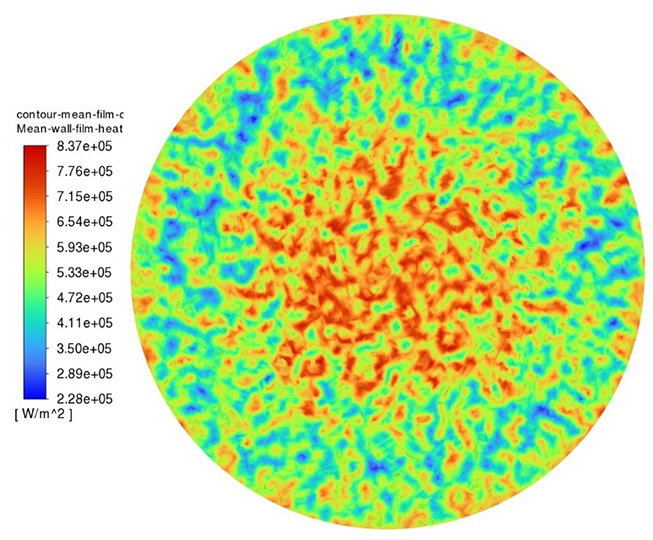

Surface Heat Flux
